6.5" (16.5CM) COMPONENT 2 - WAY SPEAKER

The New S-series with sleek and compact size are available in 2-way coaxial and component models, offer a great alternative for limited spaces of your car. S-Series emphasize the line’s sound quality at an entry level. With many sizes availability, these make suitable for various types of vehicles.

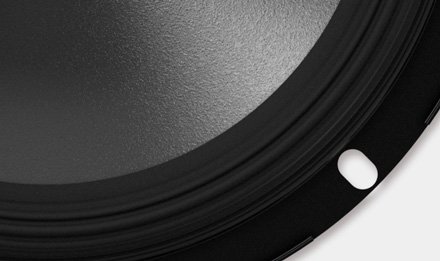

CFRP CONE

The CFRP diaphragm (Carbon Fiber Reinforced Plastic) designed just right between hardness and lightweight position to clear up sound signal and deliver efficient performance.

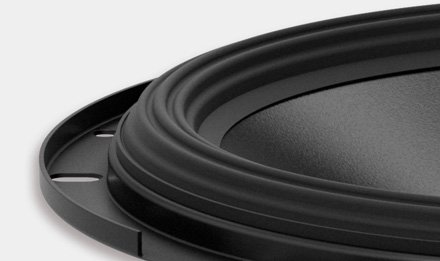

HAMR SURROUND

The Alpine uniqueness technology H.A.M.R. (High Amplitude Multi-Roll) surround adapted from high end sound system X-Series increasing high output and superb sound quality.

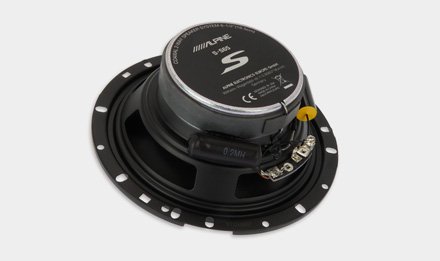

POWERFUL SPEAKER MOTOR

The voice coin size has been updated into the larger one. The enhancement increases an ability of sound quality, making the sound become more resonant.

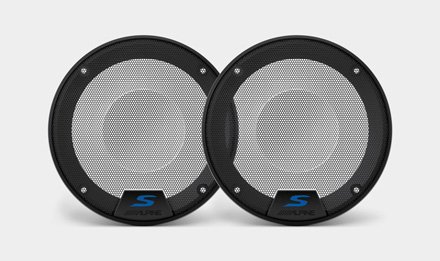

PROTECT YOUR SPEAKER

Speaker Grills with multiple sizes available match for various tapes of S-Series speaker and it is sold separately.

SPECIFICATION

GENERAL

• Frequency Range: 80 Hz - 22 kHz
• Impedance: 4 OhmsSensitivity: 88 dB/W

WOOFER

• CFRP (Carbon Fiber Reinforced Plastic) cone with spezialised rubber surround
• HAMR (High Amplitude Multi-Roll) Surround
• 25 mm Voice Coil
• Magnet Material: Ferrite
• Grill sold separately: KTE-S50G

TWEETER

• Tweeter Type: 1" Wide-Range Silk Dome
• Magnet Material: Neodymium
• Application Type: External/Swivel Tweeter Mounting
• KitFlush mountGrill: Punched net

DIMENSION WOOFER

• Frame 153 mm
• Mounting Depth: 58 mm
• Mounting Height: 12 mm
• Magnet: 128 mm

POWER HANDLING

• Peak Power: 240 Watts
• RMS Power: 80 Watts (CTA-2031 Compliant)

DIMENSION TWEETER

• Frame: 37.8 mm
• Dome: 26.6 mm
• Height: 17.4 mm
